Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications
Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: Sanxin
Сертификация: ISO
Номер модели: SX1290
Оплата и доставка Условия:
Количество мин заказа: 2
Время доставки: 5-25 дней
Условия оплаты: Т/Т,Л/К,Вестерн Юнион
Контакт
  • Подробная информация
  • Характер продукции

Подробная информация
Размеры: Настраиваемый (внутренний диаметр, внешний диаметр, длина) Ударопрочность: Отличный
Использование: Рукав для указания места нахождения Размер: Настраиваемая, чертежи клиентов
Услуга: Услуги по индивидуальному заказу OEM-сервис: Приемлемый
OEM: доступный Шероховатость поверхности: 1,6~0,1
форма: Трапецидный цилиндр Рабочая температура: -200 ° C ~ +800 ° C.
Коррозионная стойкость: Отличный Ключевые слова: втулка из карбида вольфрама
Коррозионная стойкость: Отличный Упаковка: Стандартный экспортный пакет
Выделить:

Customizable Dimensions Non-Magnetic Alloy Center Ring

,

Excellent Corrosion Resistance Precision Machined Ring

,

Precision Machined Tungsten Carbide Sleeve

Характер продукции

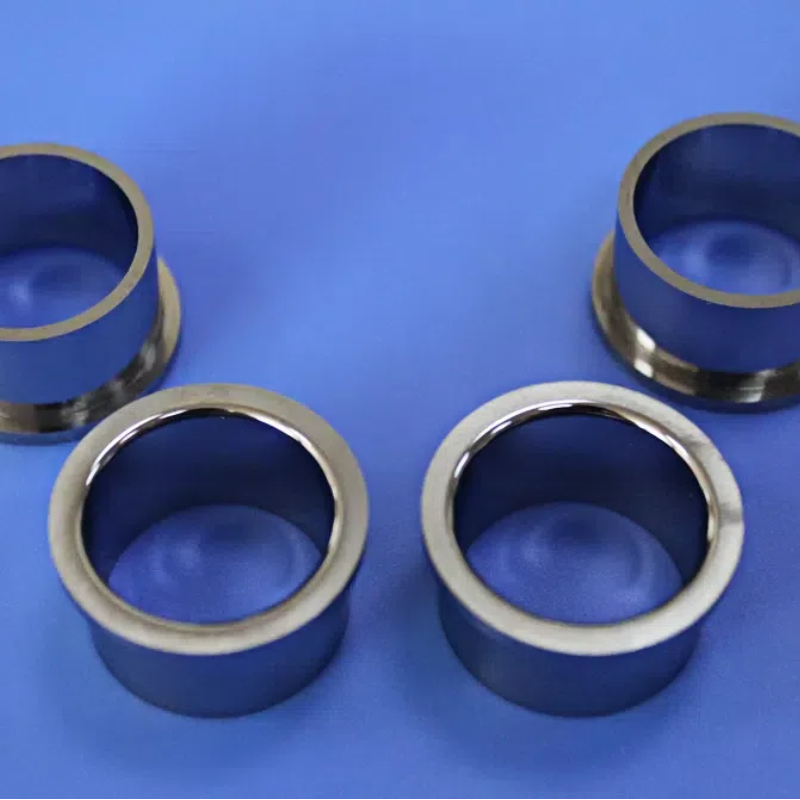

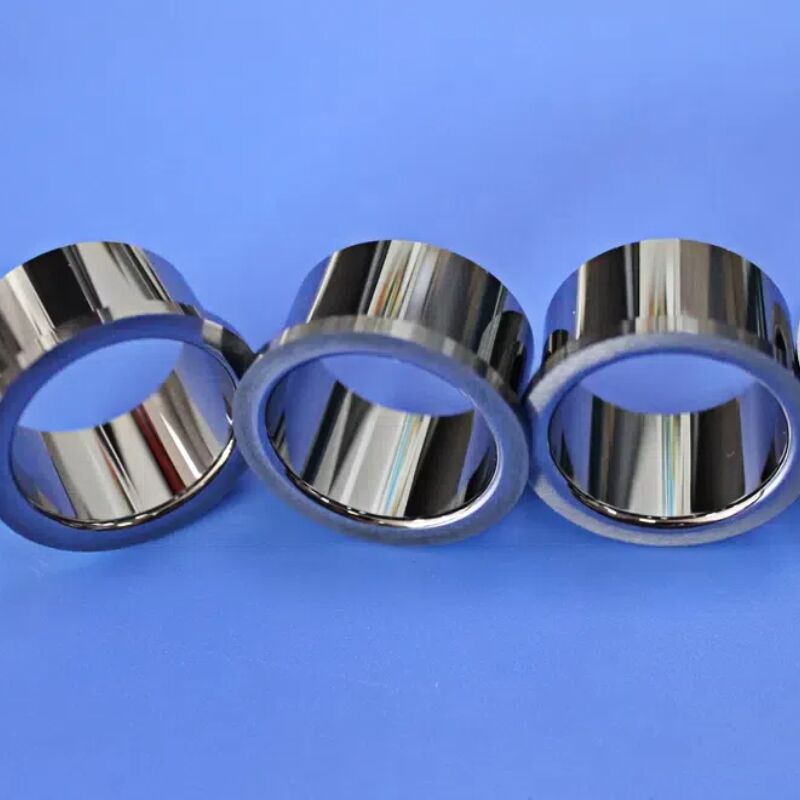

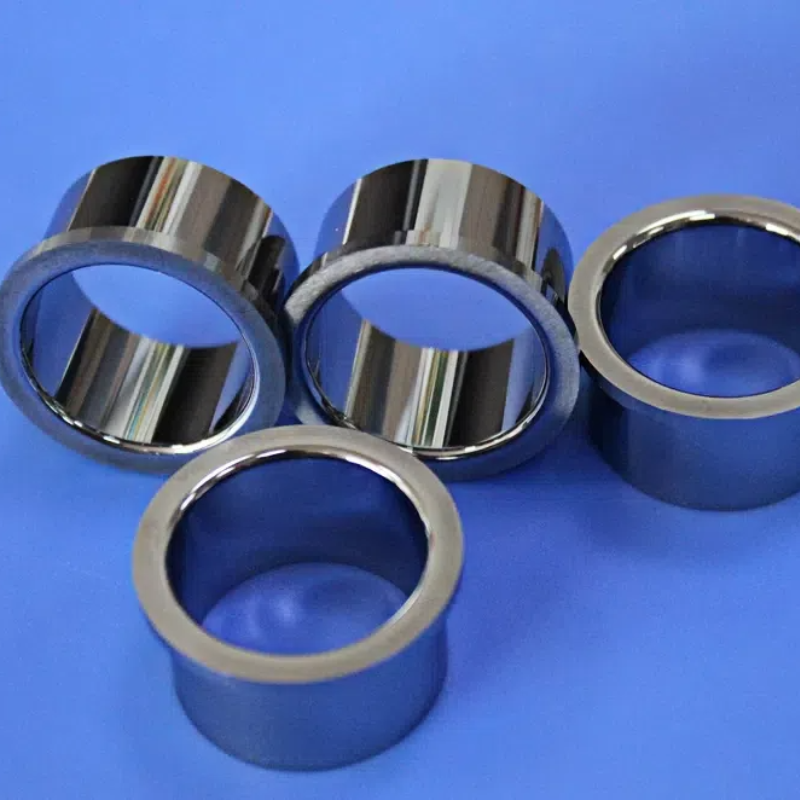

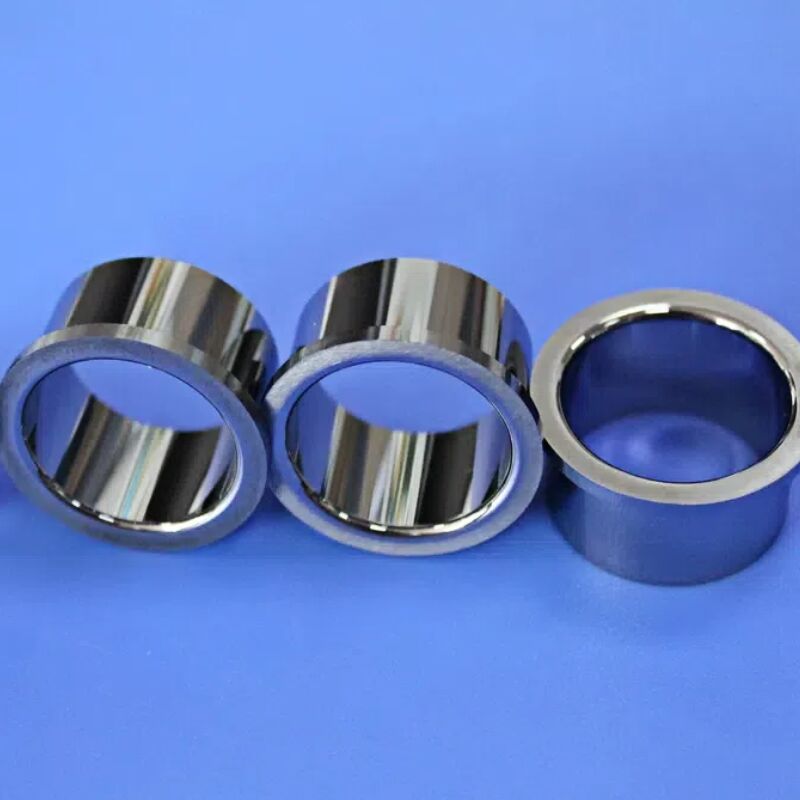

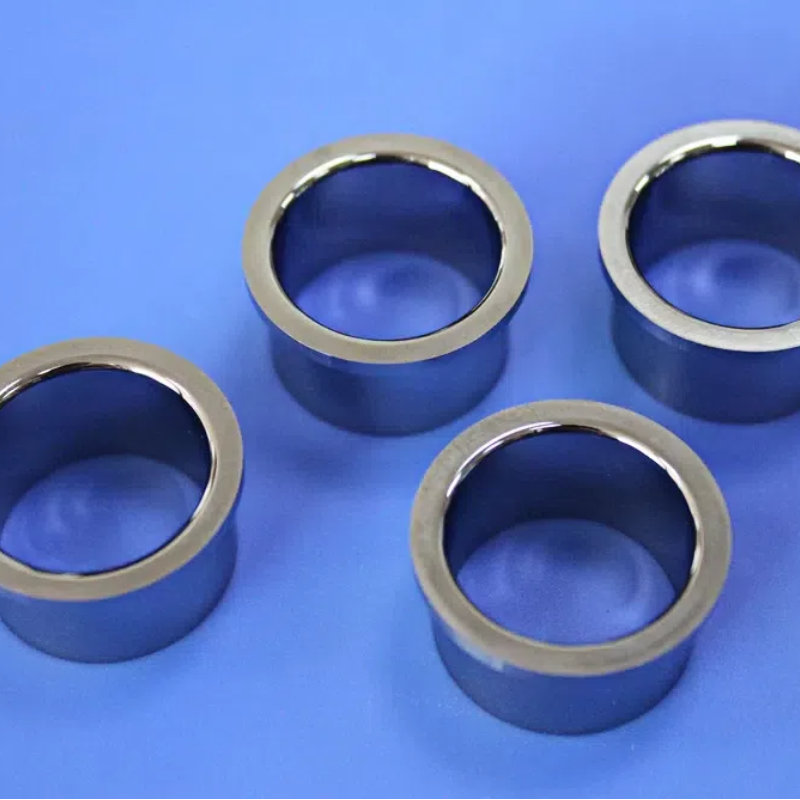

Non-Magnetic Alloy Center Rings
Precision Machined Rings for Shielding, Spacing & Mounting
Our precision-machined center rings offer zero magnetic interference, excellent dimensional stability, and corrosion resistance for use in electronics, medical devices, and research equipment. Custom sizes and materials available.
Why Choose Our Non-Magnetic Rings?
  • Guaranteed Non-Magnetic Performance: Manufactured from carefully selected copper-nickel, aluminum-bronze, or other non-ferrous alloys, these rings are inherently free from iron and cobalt. They ensure zero magnetic attraction (permeability µ ≈ 1.0) and will not disrupt sensitive magnetic fields.
  • Superior Machinability & Precision: Unlike brittle alternatives like ceramics, our non-magnetic alloys can be machined to exceptionally tight tolerances with excellent surface finishes. We achieve precise IDs, ODs, and parallelism (±0.005mm standard, tighter on request).
  • Excellent Corrosion Resistance & Conductivity: Many of our alloy options offer good to excellent resistance to corrosion from moisture, chemicals, and salts. Certain alloys also provide beneficial electrical or thermal conductivity.
  • Lightweight & Cost-Effective Alternative: Compared to dense tungsten-based non-magnetic materials, our alloy rings offer a favorable strength-to-weight ratio and are often more economical, especially for larger diameters.
Technical Specifications
We provide standard and fully custom-machined rings. Below are our common capabilities.
Parameter Specification / Standard Offering
Primary Materials Cupronickel (e.g., C71500), Aluminum Bronze, Non-Magnetic Stainless Steels (e.g., 316L), Other Engineered Non-Ferrous Alloys
Key Properties Non-Magnetic (µ ≈1.0), Good Machinability, Corrosion Resistant, Electrically Conductive (material dependent)
Standard Diameter Range Inner Diameter (ID): From 2mm | Outer Diameter (OD): Up to 300mm
Standard Thickness/Width From 1mm to 50mm
Standard Tolerances ID/OD: ±0.02mm | Thickness: ±0.01mm | Can achieve ±0.005mm for critical dimensions
Surface Finish Standard Machined: Ra 1.6 μm | Fine Machined: Ra 0.8 μm or better
Additional Features Can be supplied with grooves, threads, holes, or special coatings as per print
Target Applications & Industries
These versatile rings serve as crucial components across a wide range of high-tech fields.
Industry Typical Use Cases
Electronics & Semiconductor RF Shielding Gaskets, Vacuum Chamber Spacers, Sensor Mounting Rings within production equipment. Prevents eddy currents and magnetic interference.
Medical & Diagnostic Imaging Non-Magnetic Hardware, Spacers, and Supports inside MRI and CT scanners. Ensures patient safety and image fidelity.
Aerospace & Defense Shielding Rings, Conductive Bushings, and Structural Spacers in guidance systems and avionics where magnetic signature must be minimized.
Research & Instrumentation Sample Holders, Collimators, and Mounting Rings in electron microscopes, spectrometers, and physics experiments.
General Precision Engineering Insulating Spacers, Alignment Rings, and Wear-Resistant Bushings in any machinery where non-magnetic properties are specified.
Why Source From Us?
  • Material Expertise: We guide you to the optimal alloy (CuNi, Al Bronze, etc.) balancing non-magnetic properties, strength, corrosion resistance, and budget for your specific case.
  • Precision Manufacturing Focus: We specialize in turning simple ring specifications into high-precision, ready-to-install components that fit perfectly the first time.
  • Full Customization & Support: We manufacture to your exact blueprint. Provide a sketch, drawing, or CAD file, and we handle the rest.
Non-Magnetic Alloy Center Rings with Customizable Dimensions and Excellent Corrosion Resistance for Precision Machined Applications 0
